inexLED TV

inexLED

High definition LED displays

We produce large format displays based on modern SMD LED modules. The structure of the display is always adjusted to the individual requirements of the customer.



We create LED displays based on pixel modules from P1 to P4. In most cases, the optimal choice will be a display with a pixel P3, P2.5 or P2, although there will also be installations where the P4 modules will prove to be sufficient.

In some cases, especially when we want to reproduce details as much as possible, e.g. small subtitles, we will have to choose modules with a pixel smaller than P2, such as P1.86, P1.66 or even P1.25, but these will be definitely less cases.



inexLED P1 indoor
Pixel pitch (mm)
1 mm
LED type
SMD
Module size (mm)
320x160
Module resolution
320x160
Number of pixels per 1m²
1.000.000
Brightness (cd/m²)
700
Scan mode
1/40
Refresh rate (Hz)
3840
Optimal viewing distance (m)
1
Viewing angles (horizontal/vertical)
160/160
Average energy consumption (W/m²)
252
inexLED P1.25 indoor
Pixel pitch (mm)
1,25
LED type
SMD
Module size (mm)
320x160
Module resolution
256x128
Number of pixels per 1m²
640.000
Brightness (cd/m²)
700
Scan mode
1/32
Refresh rate (Hz)
3840
Optimal viewing distance (m)
1,2
Viewing angles (horizontal/vertical)
160/160
Average energy consumption (W/m²)
190
inexLED P1.37 indoor
Pixel pitch (mm)
1,37
LED type
SMD
Module size (mm)
320x160
Module resolution
232x116
Number of pixels per 1m²
525.625
Brightness (cd/m²)
700
Scan mode
1/29
Refresh rate (Hz)
3840
Optimal viewing distance (m)
1,4
Viewing angles (horizontal/vertical)
160/160
Average energy consumption (W/m²)
190
inexLED P1.53 indoor
Pixel pitch (mm)
1,53
LED type
SMD
Module size (mm)
320x160
Module resolution
208x104
Number of pixels per 1m²
422.500
Brightness (cd/m²)
700
Scan mode
1/26
Refresh rate (Hz)
3840
Optimal viewing distance (m)
1,5
Viewing angles (horizontal/vertical)
160/160
Average energy consumption (W/m²)
190
inexLED P1.66 indoor
Pixel pitch (mm)
1,66
LED type
SMD
Module size (mm)
320x160
Module resolution
192x96
Number of pixels per 1m²
360.000
Brightness (cd/m²)
750
Scan mode
1/32
Refresh rate (Hz)
3840
Optimal viewing distance (m)
1,7
Viewing angles (horizontal/vertical)
140/140
Average energy consumption (W/m²)
190
inexLED P1.86 indoor
Pixel pitch (mm)
1,86
LED type
SMD
Module size (mm)
320x160
Module resolution
172x86
Number of pixels per 1m²
288.906
Brightness (cd/m²)
750
Scan mode
1/43
Refresh rate (Hz)
3840
Optimal viewing distance (m)
1,8
Viewing angles (horizontal/vertical)
140/140
Average energy consumption (W/m²)
190
inexLED P2 indoor
Pixel pitch (mm)
2
LED type
SMD
Module size (mm)
320x160
Module resolution
160x80
Number of pixels per 1m²
250.000
Brightness (cd/m²)
750
Scan mode
1/40
Refresh rate (Hz)
3840
Optimal viewing distance (m)
2
Viewing angles (horizontal/vertical)
140/140
Average energy consumption (W/m²)
146
inexLED P2.5 indoor
Pixel pitch (mm)
2,5
LED type
SMD
Module size (mm)
320x160
Module resolution
128x64
Number of pixels per 1m²
160.000
Brightness (cd/m²)
750
Scan mode
1/32
Refresh rate (Hz)
3840
Optimal viewing distance (m)
2,5
Viewing angles (horizontal/vertical)
140/140
Average energy consumption (W/m²)
165
inexLED P3 indoor
Pixel pitch (mm)
3
LED type
SMD
Module size (mm)
192x192
Module resolution
64x64
Number of pixels per 1m²
111.111
Brightness (cd/m²)
750
Scan mode
1/32
Refresh rate (Hz)
3840
Optimal viewing distance (m)
3
Viewing angles (horizontal/vertical)
140/140
Average energy consumption (W/m²)
175
inexLED P4 indoor
Pixel pitch (mm)
4
LED type
SMD
Module size (mm)
256x256
Module resolution
64x64
Number of pixels per 1m²
62.500
Brightness (cd/m²)
750
Scan mode
1/20
Refresh rate (Hz)
1920
Optimal viewing distance (m)
4
Viewing angles (horizontal/vertical)
140/140
Average energy consumption (W/m²)
150

Energy efficiency

Energy consumption of the display was successfully reduced by over 50% with the use of state-of-the-art SMD LEDs and energy-saving control systems.

Highest quality

InexLED displays are produced of the highest quality components to make the displayed images uniform and legible.

Ease of service

Only a small part (a single module) of the display can be replaced in case of failure thanks to the modular design of the LED display.

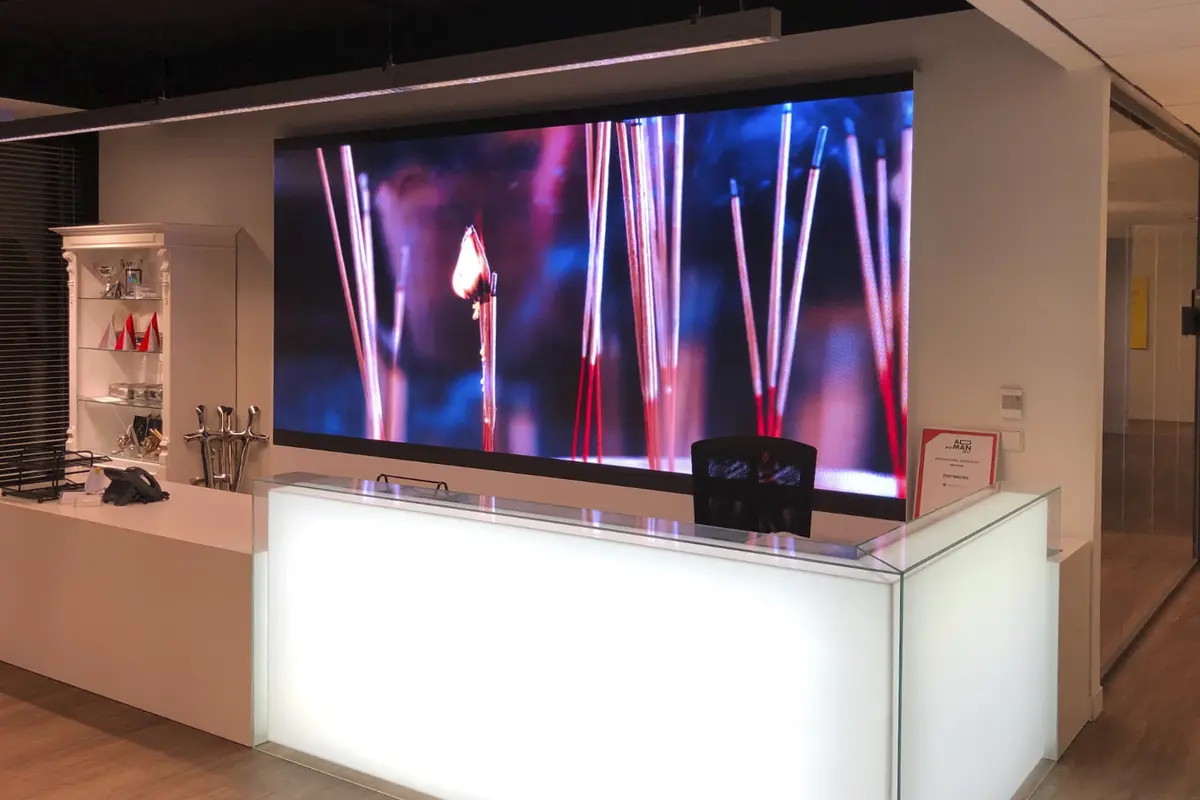

Ekran recepcyjny P2.5 UltraBlack

Instalcaja ekranu na ścianie recepcji Domu Mediowego GroupONE robi piorunujące wrażenie. Wysoka gęstość piksela w połączeniu z technologią UltraBlack sprawia, że prezentowane na ekranie obrazy są bardzo realistyczne.

Ekran recepcyjny P2.5 UltraBlack

Instalcaja ekranu na ścianie recepcji Domu Mediowego GroupONE robi piorunujące wrażenie. Wysoka gęstość piksela w połączeniu z technologią UltraBlack sprawia, że prezentowane na ekranie obrazy są bardzo realistyczne.

Ekran recepcyjny P2.5 UltraBlack

Instalcaja ekranu na ścianie recepcji Domu Mediowego GroupONE robi piorunujące wrażenie. Wysoka gęstość piksela w połączeniu z technologią UltraBlack sprawia, że prezentowane na ekranie obrazy są bardzo realistyczne.
