inexLED and CityLight totems

inexLED and CityLight totems

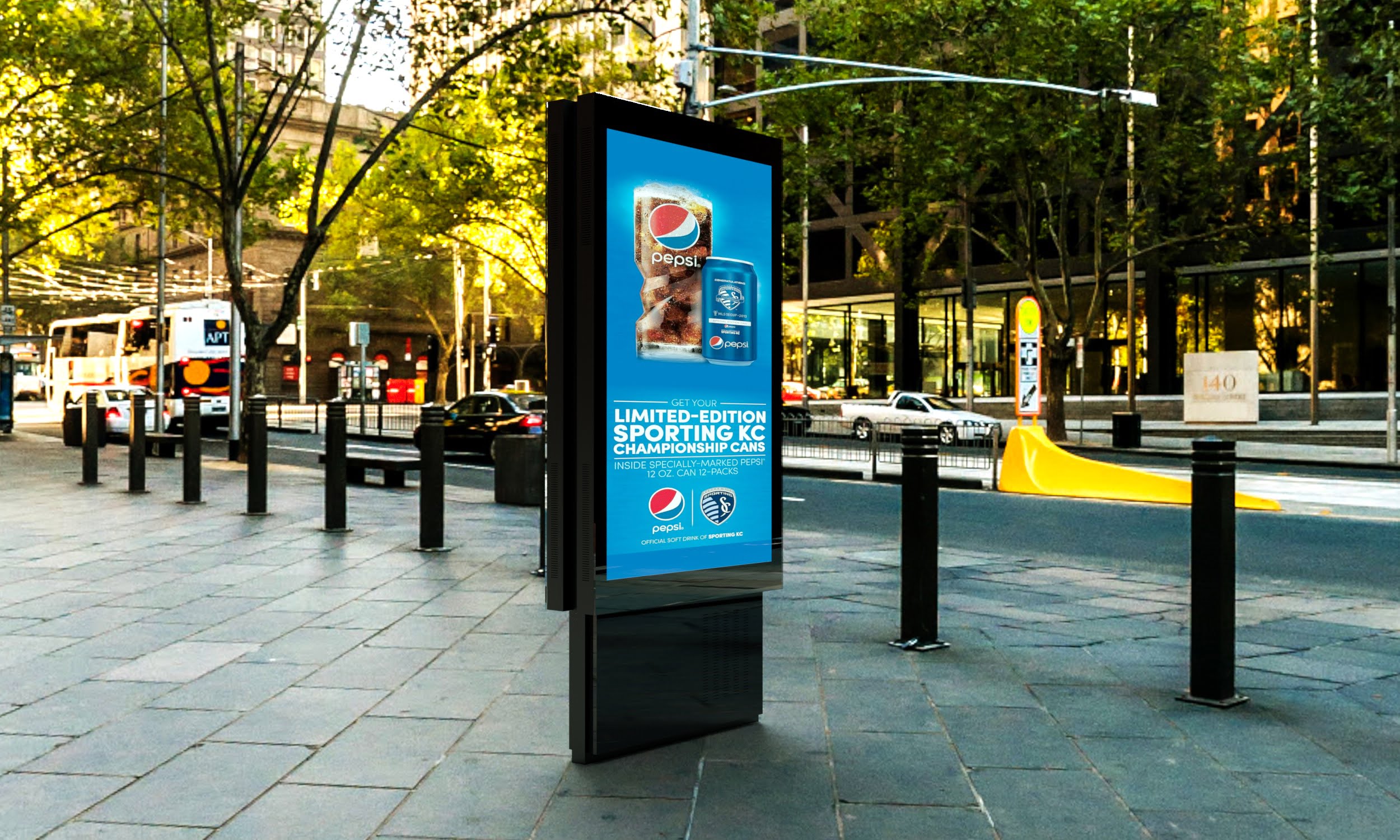

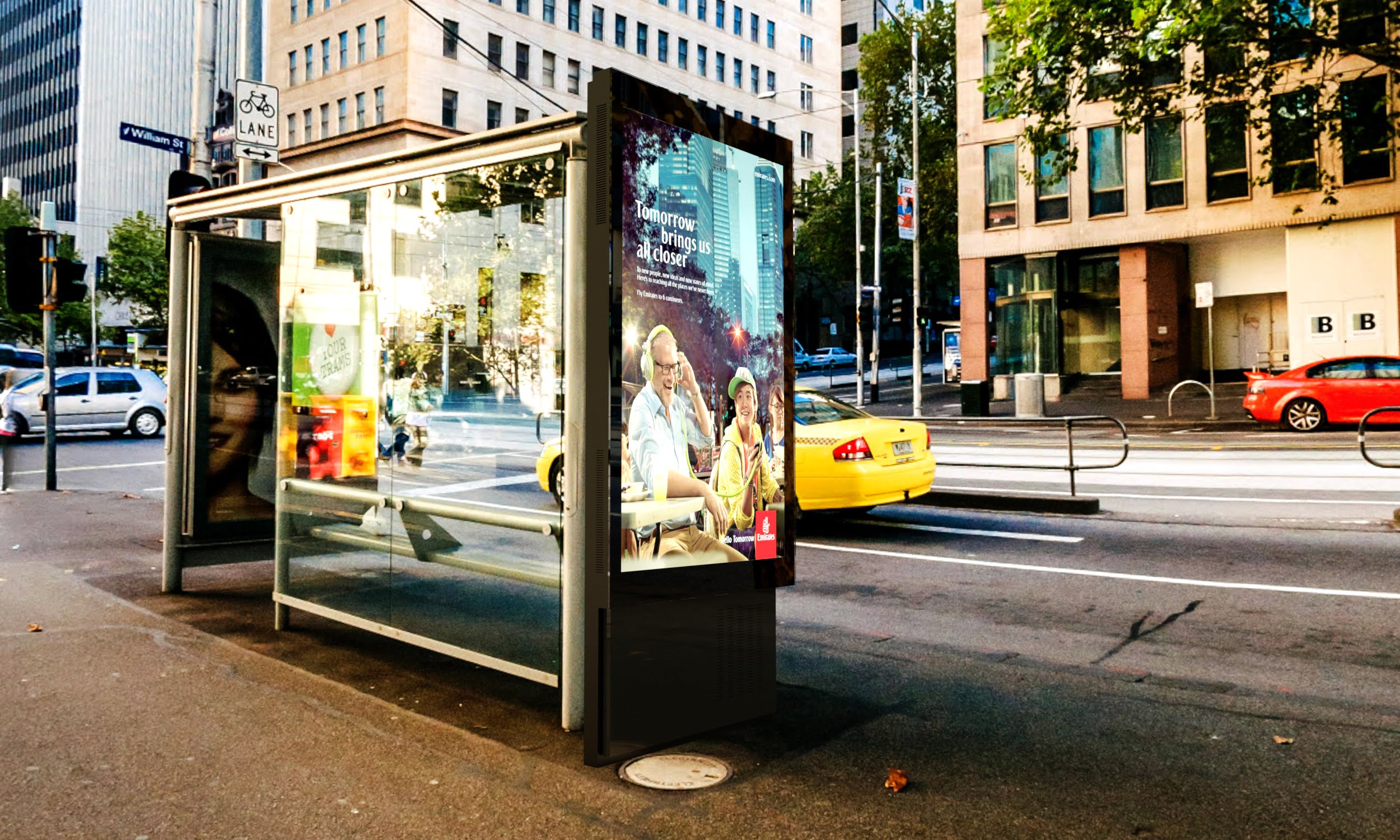

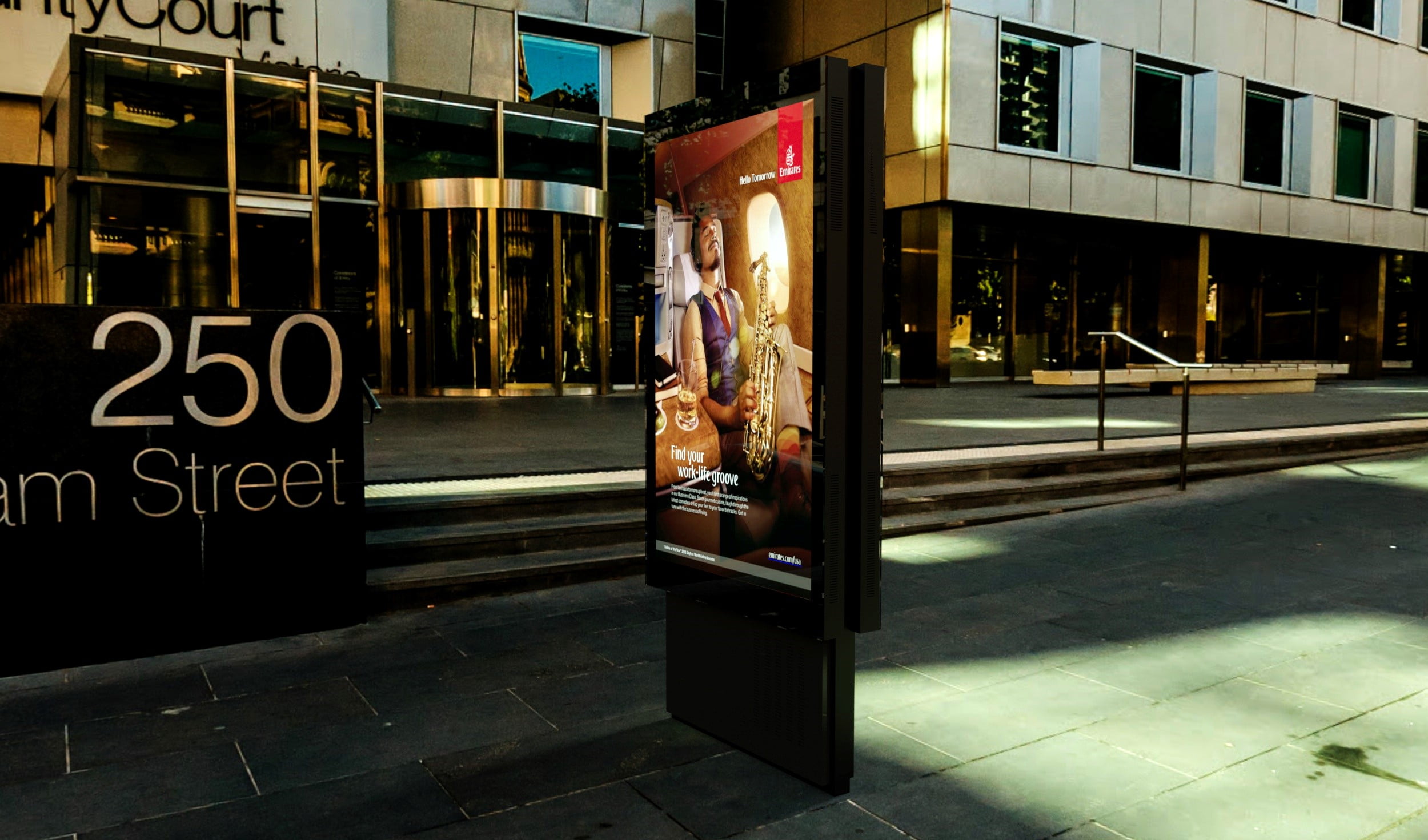

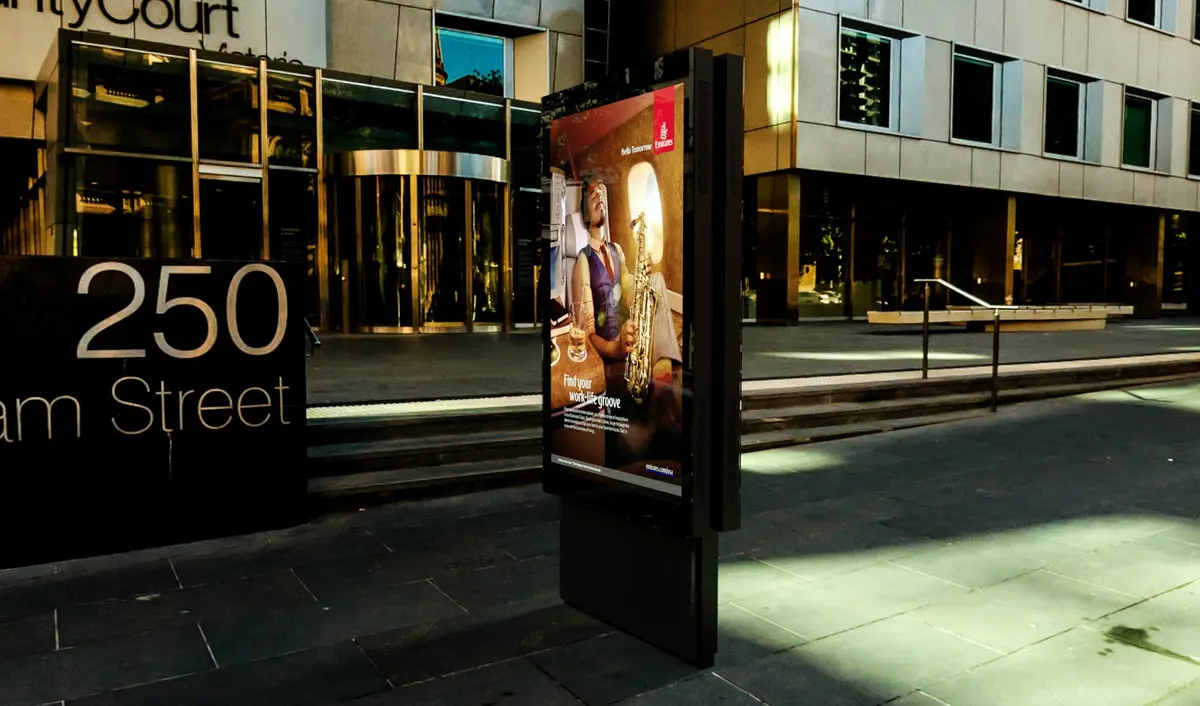

Outdoor CityLight totems and posters are an excellent alternative to traditional advertising and information media in the outdoor settings.
High brightness combined with excellent resolution make this solution more and more popular.

Outdoor totems and posters can be custom-made and individually approached. We always provide professional assistance and advice.
We recommend LED displays with P3, P4 and P5 pixel pitch for outdoor settings; a pixel pitch of P2.5 provides very high resolution.

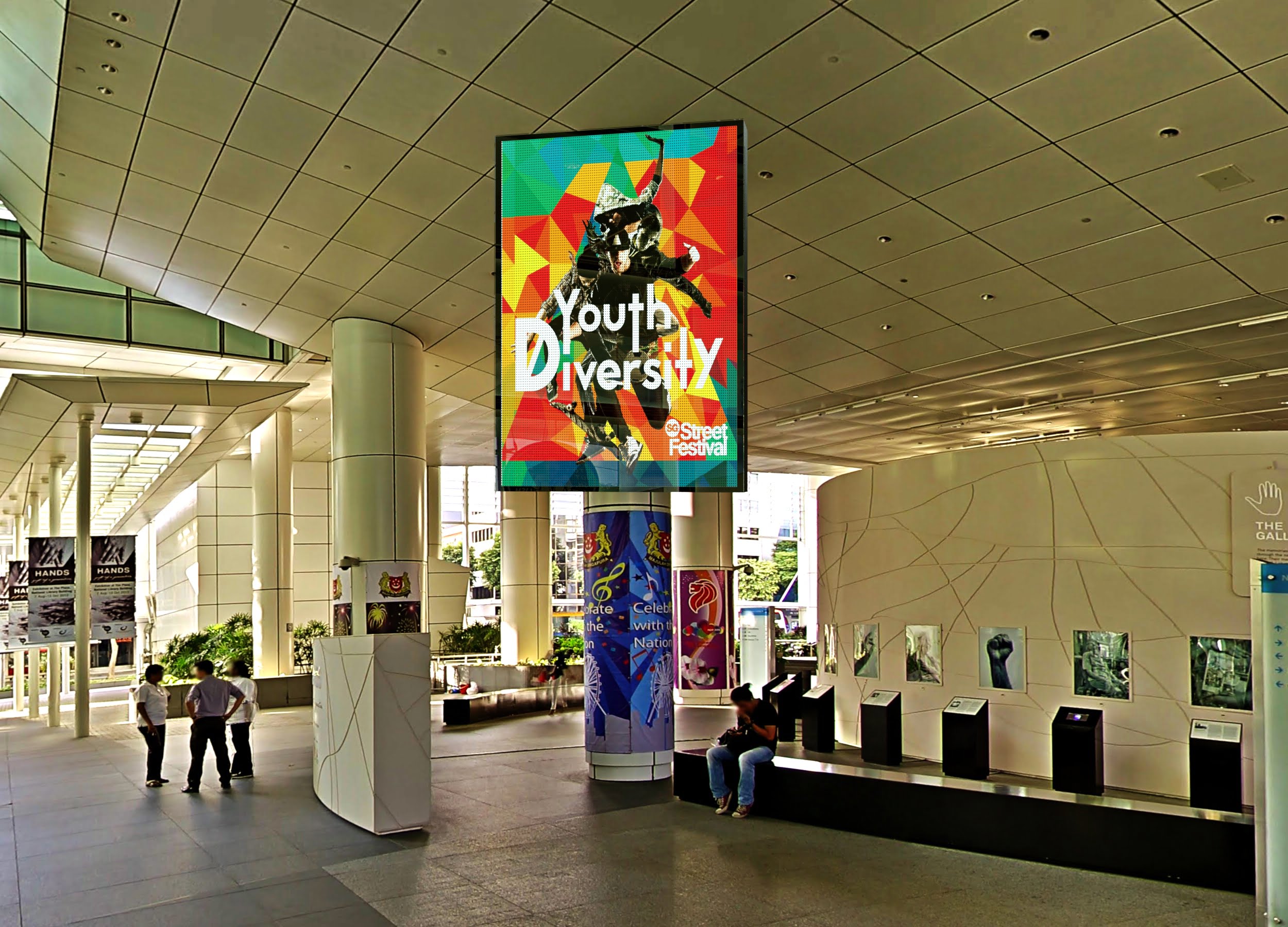

LED displays with a pixel pitch of P6.6 are recommended for large-format display or those dedicated to displaying contents in less subtle detail.
With the wide range of materials used, we are able to create personalized devices that are fully adapted to local conditions.

inexLED P2.5 outdoor
Pixel pitch mm
2,5
LED type
SMD
Module size ( mm )
320x160
Module resolution
128x64
Number of pixels per 1m²
160.000
Brightness (cd/m²)
3500
Scan mode
1/16
Refresh rate (Hz)
3840
Optimal viewing distance (m)
2,5
Viewing angles (horizontal/vertical)
140/130
Average energy consumption (W/m²)
215
inexLED P3 outdoor
Pixel pitch mm
3
LED type
SMD
Module size ( mm )
320x160
Module resolution
104x52
Number of pixels per 1m²
105.625
Brightness (cd/m²)
3500
Scan mode
1/16
Refresh rate (Hz)
3840
Optimal viewing distance (m)
3
Viewing angles (horizontal/vertical)
140/130
Average energy consumption (W/m²)
250
inexLED P4 outdoor
Pixel pitch mm
4
LED type
SMD
Module size ( mm )
320x160
Module resolution
80x40
Number of pixels per 1m²
62.500
Brightness (cd/m²)
5500
Scan mode
1/10
Refresh rate (Hz)
1920/3840
Optimal viewing distance (m)
4
Viewing angles (horizontal/vertical)
140/130
Average energy consumption (W/m²)
280
inexLED P5 outdoor
Pixel pitch mm
5
LED type
SMD
Module size ( mm )
320x160
Module resolution
64x32
Number of pixels per 1m²
40.000
Brightness (cd/m²)
5500
Scan mode
1/8
Refresh rate (Hz)
1920/3840
Optimal viewing distance (m)
5
Viewing angles (horizontal/vertical)
140/130
Average energy consumption (W/m²)
255
inexLED P6.6 outdoor
Pixel pitch mm
6,6
LED type
SMD
Module size ( mm )
320x160
Module resolution
48x24
Number of pixels per 1m²
22.500
Brightness (cd/m²)
5500
Scan mode
1/6
Refresh rate (Hz)
1920/3840
Optimal viewing distance (m)
6
Viewing angles (horizontal/vertical)
140/130
Average energy consumption (W/m²)
275

Are you interested in an outdoor totem?
Contact us

Energy efficiency

Energy consumption of the display was successfully reduced by over 50% with the use of state-of-the-art SMD LEDs and energy-saving control systems.

Highest quality

InexLED-T displays are produced of the highest quality components to make the displayed images uniform and legible.

Ease of service

Only a small part (a single module) of the display can be replaced in case of failure thanks to the modular design of the LED display.
